ROUTERS VERSUS SWITCHES

How do you decide if you should purchase a switch or a router? The following section lists the main differences between the two devices. However, switch and router capabilities vary widely. To find out what capabilities a particular product offers, you should contact the vendor:

Some switches may forward packets faster than a router forwards packets.

You do not need multiple network addresses with a switch (if network addresses are precious).

A switched network has one broadcast/multicast domain.

Routers do not broadcast packets. (Some routers allow you to enable broadcast forwarding, but don't do it!)

Some routers offer sophisticated filtering capabilities.

Routers enable you to use two network addresses (if node addresses are limited).

Some routers can act as a firewall.

Some routers can prioritize traffic.








The following technologies enable routers to perform specialized functions to improve information flow and establish a "first defense" against network intruders:

Traffic filtering and firewalling

Traffic prioritization

Traffic grouping

Variety of routing and routed protocols supported


Network Device Part 4: Routers

Whereas switches can only examine and forward packets based on the contents of the MAC header, routers can look further into the packet to discover the network for which a packet is destined. Routers make forwarding decisions based on the packet's network-layer header (such as an IPX header or IP header). These network-layer headers contain source and destination network addresses.

Local devices address packets to the router's MAC address in the MAC header. After receiving the packets, the router must perform the following steps:

1. Check the incoming packet for corruption, and remove the MAC header . The router checks the packet for MAC-layer errors. The router then strips off the MAC header and examines the network-layer header to determine what to do with the packet.

2. Examine the age of the packet. The router must ensure that the packet has not come too far to be forwarded. For example, IPX headers contain a hop count. By default, 15 hops is the maximum number of hops (or routers) that a packet can cross. If a packet has a hop count of 15, the router discards the packet.

IP headers contain a Time to Live (TTL) value. Unlike the IPX hop count, which increments as the packet is forwarded through each router, the IP TTL value decrements as the IP packet is forwarded through each router. If an IP packet has a TTL value of 1, the router discards the packet. A router cannot decrement the TTL value to 1 and then forward the packet.

3. Determine the route to the destination. Routers maintain a routing table that lists available networks, the direction to the desired network (the outgoing interface number), and the distance to those networks. After determining which direction to forward the packet, the router must build a new header. (If you want to read the IP routing tables on a Windows 95/98 workstation, type ROUTE PRINT in the DOS box.)

4. Build the new MAC header and forward the packet. Finally, the router builds a new MAC header for the packet. The MAC header includes the router's MAC address and the final destination's MAC address or the MAC address of the next router in the path.






You should try capturing the packets on each side of a router on your company's network. You will be able to see the change in the hop count or TTL value and the new MAC header. When you analyze a communication, you should examine the network layer to determine the actual source and destination of the packet.

What special feats can routers perform that switches cannot? Because routers operate at layer three of the OSI model, they support forwarding based on network addresses (as opposed to forwarding based on MAC addresses or VLAN designations). Routers can also forward packets based on the best known path (especially in the case of link state routers). In addition, routers can provide detailed filters based on the source and destination network address, as well as the source and destination process (as defined in the port number field in the network header).





Now routers are used to connect networks together and route packets of data from one net-
work to another. Cisco became the de facto standard of routers because of its high-quality
router products, great selection, and fantastic service. Routers, by default, break up a broad-
cast domain—the set of all devices on a network segment that hear all the broadcasts sent on
that segment.

There are two advantages of using routers in your network:
     They don’t forward broadcasts by default.

     They can filter the network based on layer 3 (Network layer) information (e.g.,
     IP address).

    Four router functions in your network can be listed as follows:
     Packet switching

     Packet filtering

     Internetwork communication

     Path selection


Unlike layer 2 switches, which forward or filter  frames, routers (layer 3 switches) use logical addressing and provide what is called packet switching. Routers can also provide packet filtering by using access lists, and when routers connect two or more networks together and use logical addressing (IP or IPv6), this is called an internetwork. Last, routers use a routing table (map of the internetwork) to make path selections and to forward packets to remote networks.

Network Device Part 3: Switches


Bridges usually connect two linear network segments (with one port for each segment). Switches, on the other hand, can connect devices together (with one port for each device). Because most bridges have been replaced by switches, this section focuses on switches.
Switches forward packets based on the destination media access control (MAC) address. Switches learn where devices are located when the devices initially communicate on a network. Switches then put this address information in a table.





When forwarding a packet, switches do not change the packet's contents (such as the network address or the MAC address). In a basic switched environment, all the devices are on the same network.

Like hubs, switches forward all broadcast packets and multicast packets to all ports. After all, these packets are addressed to a group or set of devices.

Switches also forward packets that are addressed to unknown MAC addresses to all active ports. If a MAC address is unknown, switches assume that they have not yet learned about that MAC address. When the intended recipient replies to the packet, switches learn where the MAC address is located.

Switches typically forward packets quickly because they do not make the more complex forwarding decisions that routers make. Although switches are fast, they have do have some inherent disadvantages. For example, consider how a switch would handle the following:

Part of a network is Token Ring, and the other part of the network is Ethernet.

All devices are communicating with one host or port.

A broadcast storm occurs.

A device sends a fragment.

A switched network contains a loop.

Network traffic must be separated into groupings.

A station sends packets to an invalid address.

Unfortunately, these issues can create problems for basic switches. If you must address one of these issues on your company's network, you must purchase a switch with advanced features, such as the following:

Translational switching

Fat pipes

Broadcast throttling

Fragment-free switching

Spanning tree protocol for loop resolution

Virtual LANs (VLANs)






Conversely, switches aren’t used to create internetworks (they do not break up broadcast
domains by default); they’re employed to add functionality to a network LAN. The main
purpose of a switch is to make a LAN work better—to optimize its performance—providing
more bandwidth for the LAN’s users. And switches don’t forward packets to other networks
as routers do. Instead, they only “switch” frames from one port to another within the
switched network.
   By default, switches break up collision domains. This is an Ethernet term used to describe
a network scenario wherein one particular device sends a packet on a network segment, forc-
ing every other device on that same segment to pay attention to it. At the same time, a different
device tries to transmit, leading to a collision, after which both devices must retransmit, one
at a time. Not very efficient! This situation is typically found in a hub environment where each
host segment connects to a hub that represents only one collision domain and only one broad-
cast domain. By contrast, each and every port on a switch represents its own collision domain.


NOTE:

Switches create separate collision domains but a single broadcast domain.
Routers provide a separate broadcast domain for each interface.



Network Devices Part 2: Bridges

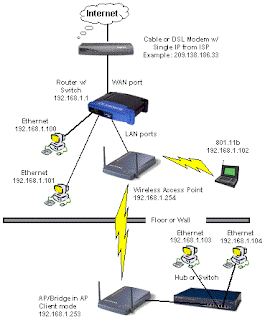

The term bridging was introduced before routers, switches and hubs were implemented, so
it’s pretty common to hear people referring to bridges as switches. That’s because bridges and
switches basically do the same thing—break up collision domains on a LAN







So what this means is that a switch is basically just a multiple-port bridge with more brain-
power, right? Well, pretty much, but there are differences. Switches do provide this function,
but they do so with greatly enhanced management ability and features. Plus, most of the time,
bridges only had 2 or 4 ports. Yes, you could get your hands on a bridge with up to 16 ports,
but that’s nothing compared to the hundreds available on some switches!






You would use a bridge in a network to reduce collisions within broadcast
                   domains and to increase the number of collision domains in your network.
                   Doing this provides more bandwidth for users. And keep in mind that using
                   hubs in your network can contribute to congestion on your Ethernet network.
                   As always, plan your network design carefully!

Network Devices Part 1:HUB


Hubs, simple multistation access units, and repeaters are the most basic forwarding devices. These devices aren't very intelligent. In fact, they don't know what a packet is; they see only 1s and 0s. Essentially, these devices forward bits from one port to another. For example, a hub receives a 1 bit in one port and copies this 1 bit to all other ports.

Of course, handling packets in this way can create problems if a device sends a broadcast storm. In this case, the broadcast storm affects all of the devices that are connected to the hub. A switch that offers broadcast throttling capabilities or a router may help you better control network traffic. These more advanced products work at the second layer in the OSI mode.







Hub never break...

Collision Domin  (Discus Earlier) and

Broadcast Domain (Discus Earlier)

CCNA Associate Course - 640-802 Overview

CCNA Associate Course - 640-802 Overview






·         Introduction
·         Network Devices & Components
·         OSI Model & TCP/IP Model
·         Network Applications
·         Connecting to the IOS Command Line Interface
·         Cisco IOS PING, Traceroute, & TFTP
·         IOS File & Configuration Management with TFTP
·         TFTP Servers & Network Management Systems (NMS)
·         Local Area Networks (LANs) Overview
·         IP ARP, MAC Address Flooding & Learning
·         Collision Domains, Broadcast Domains, & VLANs
·         Cisco Discovery Protocol (CDP)
·         VLAN Trunking & VTP
·         Spanning-Tree Protocol (STP)
·         STP Path Selection & RSTP
·         IP Addressing, Subnetting, & VLSM
·         IP Routing
·         Inter-VLAN Routing & Static Routing
·         Static vs. Dynamic Routing
·         Dynamic Routing Configuration
·         RIPv2 Overview & Configuration
·         EIGRP Overview
·         EIGRP Configuration
·         OSPF Overview
·         OSPF Configuration Part 1
·         OSPF Configuration Part 2
·         IPv6
·         Cisco Security Device Manager (SDM)
·         Dynamic Host Configuration Protocol (DHCP)
·         Domain Name System (DNS)
·         Network Address Translation (NAT)
·         Access Control Lists (ACLs)
·         Wide Area Network (WAN) Overview
·         Point-to-Point Protocol (PPP)
·         Frame-Relay Overview
·         Frame-Relay Configuration



I am going cover all above write topic step by step in my upcoming post.

Cisco Certified Network Associate (CCNA)

Cisco Certified Network Associate Exam

Exam Number: 640-802 CCNA
Associated Certifications:CCNA
Duration:90 Minutes (45-55 questions)
Available Languages:English, Japanese, Chinese, Spanish, Russian, Korean, French, Portuguese
Click Here to Register:Pearson VUE
Exam Policies:Read current policies and requirements
Exam Tutorial:Review type of exam questions


Exam Description

The 640-802 Cisco Certified Network Associate (CCNA) is the composite exam associated with the Cisco Certified Network Associate certification. Candidates can prepare for this exam by taking the Interconnecting Cisco Networking Devices Part 1 (ICND1) v1.0 and the Interconnecting Cisco Networking Devices Part 2 (ICND2) v1.0 courses. This exam tests a candidate's knowledge and skills required to install, operate, and troubleshoot a small to medium size enterprise branch network. The topics include

connecting to a WAN;

Implementing network security;

Network types;

Network media;

Routing and switching fundamentals;

The TCP/IP and OSI models;

IP addressing;

WAN technologies;

Operating and configuring IOS devices;

Extending switched networks with VLANs;

Determining IP routes;

Managing IP traffic with access lists;

Establishing point-to-point connections;

And establishing Frame Relay connections.

Exam Topics

The following topics are general guidelines for the content likely to be included on the Cisco Certified Network Associate exam. However, other related topics may also appear on any specific delivery of the exam. In order to better reflect the contents of the exam and for clarity purposes, the guidelines below may change at any time without notice.

Describe how a network works

  • Describe the purpose and functions of various network devices
  • Select the components required to meet a network specification
  • Use the OSI and TCP/IP models and their associated protocols to explain how data flows in a network
  • Describe common networked applications including web applications
  • Describe the purpose and basic operation of the protocols in the OSI and TCP models
  • Describe the impact of applications (Voice Over IP and Video Over IP) on a network
  • Interpret network diagrams
  • Determine the path between two hosts across a network
  • Describe the components required for network and Internet communications
  • Identify and correct common network problems at layers 1, 2, 3 and 7 using a layered model approach
  • Differentiate between LAN/WAN operation and features

Configure, verify and troubleshoot a switch with VLANs and interswitch communications

  • Select the appropriate media, cables, ports, and connectors to connect switches to other network devices and hosts
  • Explain the technology and media access control method for Ethernet networks
  • Explain network segmentation and basic traffic management concepts
  • Explain basic switching concepts and the operation of Cisco switches
  • Perform and verify initial switch configuration tasks including remote access management
  • Verify network status and switch operation using basic utilities (including: ping, traceroute, telnet, SSH, arp, ipconfig), SHOW & DEBUG commands
  • Identify, prescribe, and resolve common switched network media issues, configuration issues, auto negotiation, and switch hardware failures
  • Describe enhanced switching technologies (including: VTP, RSTP, VLAN, PVSTP, 802.1q)
  • Describe how VLANs create logically separate networks and the need for routing between them
  • Configure, verify, and troubleshoot VLANs
  • Configure, verify, and troubleshoot trunking on Cisco switches
  • Configure, verify, and troubleshoot interVLAN routing
  • Configure, verify, and troubleshoot VTP
  • Configure, verify, and troubleshoot RSTP operation
  • Interpret the output of various show and debug commands to verify the operational status of a Cisco switched network.
  • Implement basic switch security (including: port security, trunk access, management vlan other than vlan1, etc.)

Implement an IP addressing scheme and IP Services to meet network requirements in a medium-size Enterprise branch office network.

  • Describe the operation and benefits of using private and public IP addressing
  • Explain the operation and benefits of using DHCP and DNS
  • Configure, verify and troubleshoot DHCP and DNS operation on a router.(including: CLI/SDM)
  • Implement static and dynamic addressing services for hosts in a LAN environment
  • Calculate and apply an addressing scheme including VLSM IP addressing design to a network
  • Determine the appropriate classless addressing scheme using VLSM and summarization to satisfy addressing requirements in a LAN/WAN environment
  • Describe the technological requirements for running IPv6 in conjunction with IPv4 (including: protocols, dual stack, tunneling, etc).
  • Describe IPv6 addresses
  • Identify and correct common problems associated with IP addressing and host configurations

Configure, verify, and troubleshoot basic router operation and routing on Cisco devices

  • Describe basic routing concepts (including: packet forwarding, router lookup process)
  • Describe the operation of Cisco routers (including: router bootup process, POST, router components)
  • Select the appropriate media, cables, ports, and connectors to connect routers to other network devices and hosts
  • Configure, verify, and troubleshoot RIPv2
  • Access and utilize the router to set basic parameters.(including: CLI/SDM)
  • Connect, configure, and verify operation status of a device interface
  • Verify device configuration and network connectivity using ping, traceroute, telnet, SSH or other utilities
  • Perform and verify routing configuration tasks for a static or default route given specific routing requirements
  • Manage IOS configuration files. (including: save, edit, upgrade, restore)
  • Manage Cisco IOS.
  • Compare and contrast methods of routing and routing protocols
  • Configure, verify, and troubleshoot OSPF
  • Configure, verify, and troubleshoot EIGRP
  • Verify network connectivity (including: using ping, traceroute, and telnet or SSH)
  • Troubleshoot routing issues
  • Verify router hardware and software operation using SHOW & DEBUG commands.
  • Implement basic router security

Explain and select the appropriate administrative tasks required for a WLAN

  • Describe standards associated with wireless media (including: IEEE WI-FI Alliance, ITU/FCC)
  • Identify and describe the purpose of the components in a small wireless network. (Including: SSID, BSS, ESS)
  • Identify the basic parameters to configure on a wireless network to ensure that devices connect to the correct access point
  • Compare and contrast wireless security features and capabilities of WPA security (including: open, WEP, WPA-1/2)
  • Identify common issues with implementing wireless networks. (Including: Interface, missconfiguration)

Identify security threats to a network and describe general methods to mitigate those threats

  • Describe today's increasing network security threats and explain the need to implement a comprehensive security policy to mitigate the threats
  • Explain general methods to mitigate common security threats to network devices, hosts, and applications
  • Describe the functions of common security appliances and applications
  • Describe security recommended practices including initial steps to secure network devices

Implement, verify, and troubleshoot NAT and ACLs in a medium-size Enterprise branch office network.

  • Describe the purpose and types of ACLs
  • Configure and apply ACLs based on network filtering requirements.(including: CLI/SDM)
  • Configure and apply an ACLs to limit telnet and SSH access to the router using (including: SDM/CLI)
  • Verify and monitor ACLs in a network environment
  • Troubleshoot ACL issues
  • Explain the basic operation of NAT
  • Configure NAT for given network requirements using (including: CLI/SDM)
  • Troubleshoot NAT issues

Implement and verify WAN links

  • Describe different methods for connecting to a WAN
  • Configure and verify a basic WAN serial connection
  • Configure and verify Frame Relay on Cisco routers
  • Troubleshoot WAN implementation issues
  • Describe VPN technology (including: importance, benefits, role, impact, components)
  • Configure and verify a PPP connection between Cisco routers

Source: Cisco Website
Powered by Blogger
